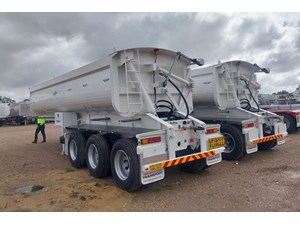

MINING SPECS SIDE TIPPER
Featuring a heavy duty, high tensile bin, these units are suitable for carrying gravel, stone and all other construction material in the roughest parts of Australia, just ask our many customers! Rated at 40 Tonne and Fitted with Spring Suspension, and with K-Hitch Axles, These units also feature:
- High Tensile steel bowl - 1000 mpa high tensile
-Tri-Axle
-Road Train specs/ plumbing (ringfeder not included)
-1 position king pin (your choice of size- 50mm or 90mm)
-50mm or 90mm Turn Table
-LED lights.
-10 Stud 11R/22.5inch wheels and tyres (brand new)
-Webbing at 8mm, flange at 20mm, High tensile.
-Rubber Flexi-Guards
-8 PTO fittings outlets.
-K HITCH 10 Stud axles
-K Hitch 9 leaf over slung spring suspension
-All signage at rear
-All hydraulics supplied and fitted
-Waterproof Electric tarp
Overall Length: Approx. 9.5 metres
TARE: 10.5 Tonnes (Approx.)
ATM: 45 Tonne, GTM 25 Tonnes
Bowl size: 8000mm long, 1200mm high, 2500mm wide, 24 cubic
meters
Tyres: 11R22.5
Axle Spacing: 9.1 Spread
Steel Material High-Tensile Steel NM450 designed for heavy-duty mine
works
ALL MODELS AVAILABLE ON SPRING SUSPENSION
OPTIONAL ALLOY WHEELS (HIGHLY RECOMMENDED TO KEEP THE WEIGHT DOWN)
Price starts from $105,000 (Plus GST)
Please note that the advertised price is a starting price only. Additional options and upgrades, including but not limited to Airbag Suspension, Hydraulic Ramps, Water Tanks, Winches, Alloy Rims, Side Gates, and other custom specifications, are available at an additional cost. Please contact our sales team for a detailed quotation tailored to your requirements.
Stock Available for Inspection in WA, NSW, QLD, SA
All prices are exclusive of GST. Relocation, delivery, and registration fees may apply depending on your location and trailer specification.
Images shown may include optional extras, accessories, and upgraded specifications that are not included in the base advertised price.
Specifications, features, dimensions, and availability are subject to change without notice. We recommend contacting our sales team to confirm current specifications, pricing, and stock availability prior to purchase or inspection.

2026 FREIGHTMORE TRANSPORT 2026 FREIGHTMORE TRANSPORT SIDE TIPPER MINE SPECS A AND B

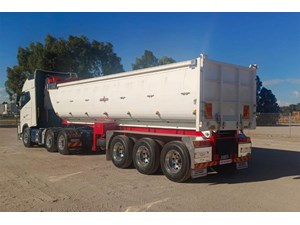

REAR END TIPPER/CONSTRUCTION TIPPER
Our Rear Semi Tippers are structurally designed for heavy duty work. These trailers are sitting on 20inch axles with K-Hitch Airbag/Spring suspension, and brand new 11R22.5 Tyres.
* High tensile steel bowl, 9600mm long x 2500mm wide x 1200mm height,
* Bowl capacity 30 cubic meters
* K-Hitch 20inch axles- Tri-Axle
* K-Hitch Airbag Suspension or Spring Suspension
* HYVA hydraulic hoist
* Bolt on king pin- available 50mm or 90mm
* Toolbox
* Spare wheel cradle
* Two-Way tailgate
* Heavy Duty Tipper with 1.4m high for easy loading Bobcat etc.
* Waterproof Tarp electric TARP front to back

Pollish Alloy Wheels
ATM 45Tn
GTM 25Tn
Additional Add ons available
-Alloy Wheels
ROAD TRAIN READY SET-UP R/T Tow coupling, Road Train EBS, Electric
plug,Airlined & Rear Plumbing)
MODELS AVAILABLE
REAR CONSTRUCTION END TIPPER-B IF 8.5 TARE WEIGHT
AIRBAGS
REAR CONSTRUCTION END TIPPER-B IF 8.5 TARE WEIGHT
SPRINGS
REAR CONSTRUCTION END TIPPER-B IF 7.3 TARE WEIGHT( NEW
MODEL COMING SOON)
AIRBAGS
REAR CONSTRUCTION END TIPPER-B IF 7.3 TARE WEIGHT( NEW
MODEL COMING SOON)
SPRINGS
Price starting from $99,800+ GST( Spring Suspension)
Please note that the advertised price is a starting price only. Additional options and upgrades, including but not limited to Airbag Suspension, Hydraulic Ramps, Water Tanks, Winches, Alloy Rims, Side Gates, and other custom specifications, are available at an additional cost. Please contact our sales team for a detailed quotation tailored to your requirements.
Stock Available for Inspection in WA, NSW, QLD, SA
All prices are exclusive of GST. Relocation, delivery, and registration fees may apply depending on your location and trailer specification.
Images shown may include optional extras, accessories, and upgraded specifications that are not included in the base advertised price.
Specifications, features, dimensions, and availability are subject to change without notice. We recommend contacting our sales team to confirm current specifications, pricing, and stock availability prior to purchase or inspection.

2026 FREIGHTMORE TRANSPORT 2026 FREIGHTMORE TRANSPORT REAR CONSTRUCTION END TIPPER

BELT TIPPER TRAILER
EOFY SPECIAL SAVE $25,000
WAS $135,000 + GST
NOW ONLY $110,000 + GST
Built for efficient bulk material transport and controlled unloading, our Heavy Duty Belt Tipper Trailers are engineered for reliability, safety, and maximum productivity. Ideal for grain, fertiliser, aggregates, waste products, and other bulk commodities where conventional tipping may not be suitable.
Specifications
High Tensile Steel Bowl
Length: 10,100mm
Width: 2,500mm
Side Height: 1,200mm
Rated Capacity: 45 Tonnes
High Quality Conveyor Belt with Slats
Single Direction Belt System for Smooth and Controlled Unloading
Multiple Speed Flow Control
Automatic Rear Door Operation
PTO Driven Hydraulic Motor
High Quality Motor Driving Through Double Reduction Transmission
K-Hitch Tri-Axle Running Gear
K-Hitch 20" Axles
K-Hitch 9 Leaf Overslung Spring Suspension
Bolt-On King Pin
Available in 50mm or 90mm
Electric Roll-Over Tarp System
Emergency Belt Stop Switches at Rear
JOST Landing Legs
Spare Wheel Cradle
2 Heavy Duty Toolboxes
LED Lighting Package
Benefits
Fast and Controlled Unloading
Suitable for Low Clearance Areas
Reduced Risk of Rollovers Compared to Conventional Tippers
Ideal for Bulk Grain, Fertiliser, Compost, Waste and Aggregate Transport
Low Maintenance Design
Built for Australian Conditions
Price
Special EOFY Price: $110,000 + GST
Save $25,000 Off RRP
Please note that the advertised price is a starting price only. Additional options and upgrades, including but not limited to Airbag Suspension, Hydraulic Ramps, Water Tanks, Winches, Alloy Rims, Side Gates, and other custom specifications, are available at an additional cost. Please contact our sales team for a detailed quotation tailored to your requirements.
Stock Available for Inspection in WA, NSW, QLD, SA
All prices are exclusive of GST. Relocation, delivery, and registration fees may apply depending on your location and trailer specification.
Images shown may include optional extras, accessories, and upgraded specifications that are not included in the base advertised price.
Specifications, features, dimensions, and availability are subject to change without notice. We recommend contacting our sales team to confirm current specifications, pricing, and stock availability prior to purchase or inspection.

2025 FREIGHTMORE TRANSPORT 2025 FREIGHTMORE TRANSPORT LIVE BOTTOM BELT TIPPER

GRAIN TIPPER STEEL B ( ALSO AVAILABLE IN SLIDING A )
Our Grain Tippers are seasonal stock, designed for carrying mulch, chicken manure, grain and all other lightweight agricultural materials.
ATM of 45 Tonnes , these trailers, sitting on K-Hitch 20inch axles with K-Hitch spring suspension, and brand new 11R22.5 Tyres, are a farmers best friend.
Also available Grain Tipper A - sliding in Spring and Airbag (Price Extra)
Some of the standard features of these trailers include:
High tensile steel bowl, 9700mm long by 2100 mm height
K-Hitch 20inch axles- Tri-Axle
K-Hitch 9 leaf overslung spring suspension
Grain chute
HYVA 5 stage hoist
Bolt on king pin- available 50mm or 90mm
Toolbox
Spare wheel cradle
two-Way tailgate
Road train bracket
Optional alloy wheels and electric tarp!!
WE CAN SUPPLY AND FIT YOU A RINGFEEDER ON REQUEST.
Price Starts from $99,000 (plus GST)
Please note that the advertised price is a starting price only. Additional options and upgrades, including but not limited to Airbag Suspension, Hydraulic Ramps, Water Tanks, Winches, Alloy Rims, Side Gates, and other custom specifications, are available at an additional cost. Please contact our sales team for a detailed quotation tailored to your requirements.
Stock Available for Inspection in WA, NSW, QLD, SA
All prices are exclusive of GST. Relocation, delivery, and registration fees may apply depending on your location and trailer specification.
Images shown may include optional extras, accessories, and upgraded specifications that are not included in the base advertised price.
Specifications, features, dimensions, and availability are subject to change without notice. We recommend contacting our sales team to confirm current specifications, pricing, and stock availability prior to purchase or inspection.

2026 FREIGHTMORE TRANSPORT 2026 FREIGHTMORE TRANSPORT GRAIN TIPPER STEEL B ALSO AVAILABLE IN SLIDING A

ALUMINIUM TRI-AXLE DOG TIPPER
EOFY SALE SAVE $20,000
WAS $110,000 + GST
NOW ONLY $90,000 + GST
Built for durability, payload efficiency, and reliable performance, our Aluminium Tri-Axle Dog Tipper is ideal for earthmoving, landscaping, construction, agricultural, and bulk material transport applications.
Features & Specifications
Lightweight Aluminium Body Construction
K-Hitch Tri-Axle Running Gear
K-Hitch Airbag Suspension
19.5" Polished Alloy Wheels
HYVA Hoist System
Air-Operated Controls
3-Position Bolt-On 50mm King Pin
Heavy Duty Toolbox
Spare Wheel Cradle
Two-Way Tailgate with Chute
1.5m High Sides for Easy Loading with Bobcat and Other Equipment
LED Lighting Package
Built for Australian Operating Conditions.
Please note that the advertised price is a starting price only. Additional options and upgrades, including but not limited to Airbag Suspension, Hydraulic Ramps, Water Tanks, Winches, Alloy Rims, Side Gates, and other custom specifications, are available at an additional cost. Please contact our sales team for a detailed quotation tailored to your requirements.
Stock Available for Inspection in WA, NSW, QLD, SA
All prices are exclusive of GST. Relocation, delivery, and registration fees may apply depending on your location and trailer specification.
Images shown may include optional extras, accessories, and upgraded specifications that are not included in the base advertised price.
Specifications, features, dimensions, and availability are subject to change without notice. We recommend contacting our sales team to confirm current specifications, pricing, and stock availability prior to purchase or inspection.

2026 FREIGHTMORE TRANSPORT 2026 FREIGHTMORE TRANSPORT ALUMINIUM TRIAXLE DOG TIPPER

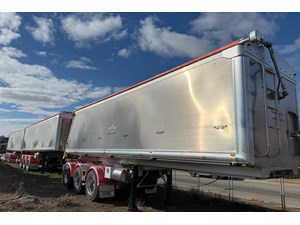

Aluminium-GRAIN TIPPER-B
Some of the standard features of these trailers include:
Aluminium Grain Tipper B
* High tensile Aluminium bowl

B trailer 9710mm long by 2300mm wide ,2100mm height
* K-Hitch 20inch axles- Tri-Axle
* K-Hitch over slung Airbag suspension
* Grain chute
* HYVA 5 stage hoist
* Bolt on king pin- available 50mm or 90mm
* Toolbox
* Spare wheel cradle

* Swinging tailgate
* Electric Roll Over Waterproof Tarp.

Our Grain Tippers now come fully fitted with Ringfeder bracket and all plumbing at
rear-
Tare 7.2 TONNES ATM 45 TONNES GTM 25 TONNES
Additional Add ons available
-Alloy Wheels
ROAD TRAIN READY SET-UP R/T Tow coupling, Road Train EBS, Electric
plug, Airlined & Rear Plumbing)
MODELS AVAILABLE
ALLOY GRAIN TIPPER-B (Airbags)
ALLOY GRAIN TIPPER
SLIDER -A (Airbags)
Price Starts from $138,000* AUD Ex GST, to get the full price for individual model please contact our sales team!!
OPTIONAL ALLOY WHEELS (HIGHLY RECOMMENDED TO KEEP THE WEIGHT DOWN) AND ELECTRIC ROLLOVER TARP
Please note that the advertised price is a starting price only. Additional options and upgrades, including but not limited to Airbag Suspension, Hydraulic Ramps, Water Tanks, Winches, Alloy Rims, Side Gates, and other custom specifications, are available at an additional cost. Please contact our sales team for a detailed quotation tailored to your requirements.
Stock Available for Inspection in WA, NSW, QLD, SA
All prices are exclusive of GST. Relocation, delivery, and registration fees may apply depending on your location and trailer specification.
Images shown may include optional extras, accessories, and upgraded specifications that are not included in the base advertised price.
Specifications, features, dimensions, and availability are subject to change without notice. We recommend contacting our sales team to confirm current specifications, pricing, and stock availability prior to purchase or inspection.

2026 FREIGHTMORE TRANSPORT 2026 FREIGHTMORE TRANSPORT GRAIN TIPPER B ALUMINIUM ALSO AVAILABLE IN SLIDING A
